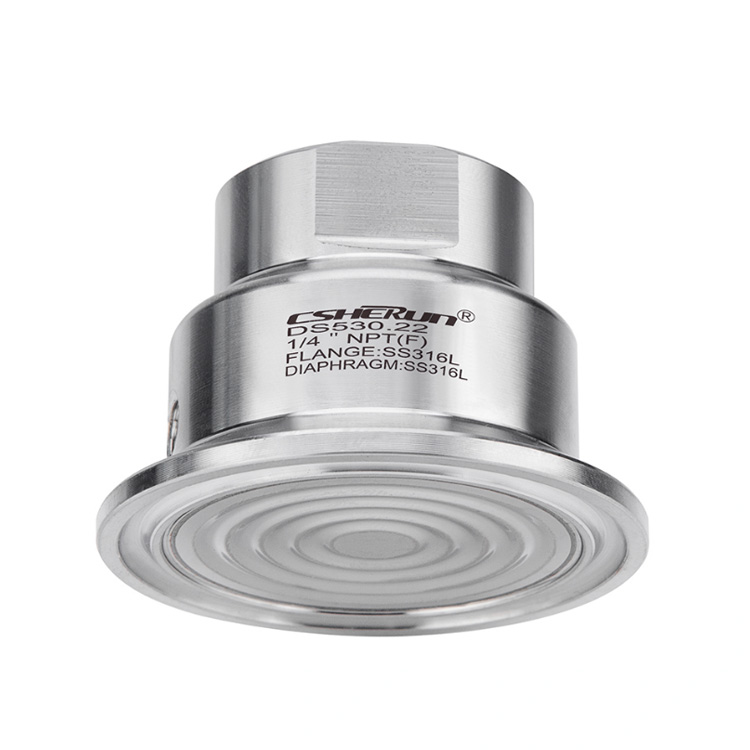

滅菌接続を伴うダイアフラムシール

The Diaphragm Seal With Sterile Connectionis constructed from high-quality materials that are compatible with a wide range of media and temperatures. Its clamp connection design allows for easy installation and integration into your existing process systems, ensuring minimal disruption to your operations.

The sterile diaphragm of this seal provides a critical barrier that prevents contamination and cross-contamination of the process media. This is particularly important in applications such as biopharmaceutical manufacturing, medical device production, and food and beverage processing, where sterile conditions are crucial.

As a trusted manufacturer of Diaphragm Seal With Sterile Connection, we are committed to providing high-quality products and exceptional customer service. Our Diaphragm Seal with Sterile Connection is designed and manufactured to meet the stringent standards of the sterile processing industry, ensuring reliability and accuracy in your pressure measurement needs.

Whether you're in the biopharmaceutical, medical device, food and beverage, or other critical industries, the Diaphragm Seal with Sterile Connectionis your go-to solution for pressure measurement in sterile environments. Contact us today to learn more about our products and services.



Applications

●Sanitary applications

●Gases, compressed air, vapour; liquid, pasty, powdery and crystallising media

●Ultra-pure steam systems

●Mounting to pipelines and vessels

●Pressure/vacuum monitoring, e.g. vacuum conveyors,pump monitoring

Special features

●Quick cleaning, without residue

●Clamp connection easy to open for cleaning and seal replacement

●Suitable for SIP and CIP

●Compliant per ASME BPE

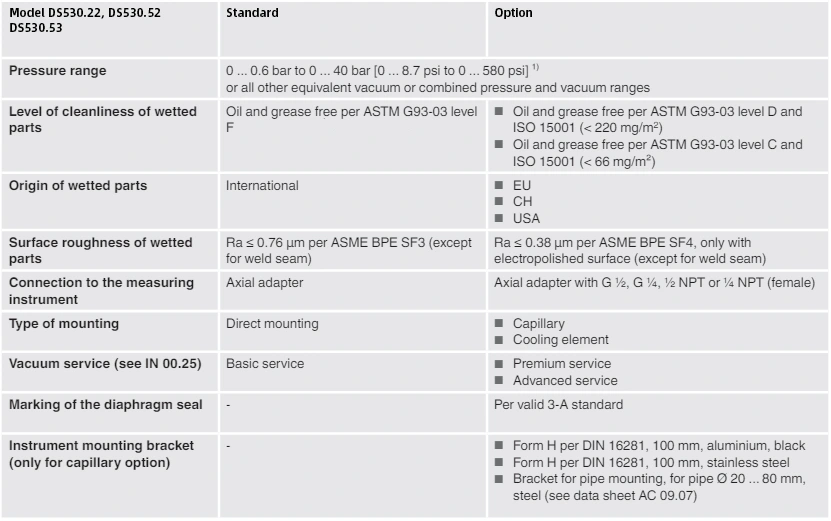

Specification

Material combinations

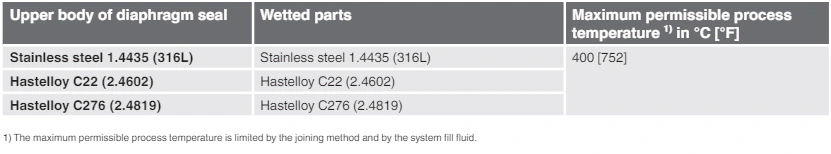

Further material combinations for special process temperatures on request

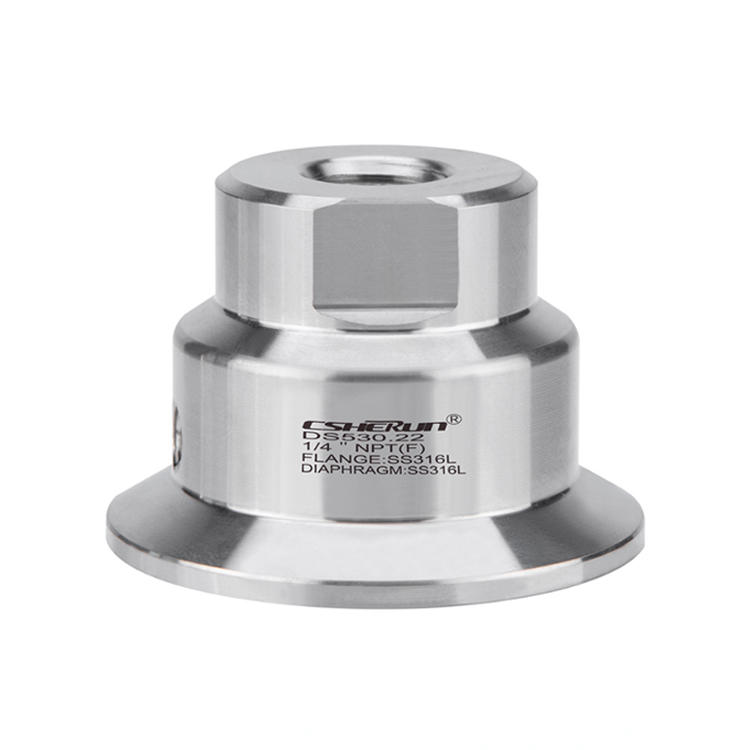

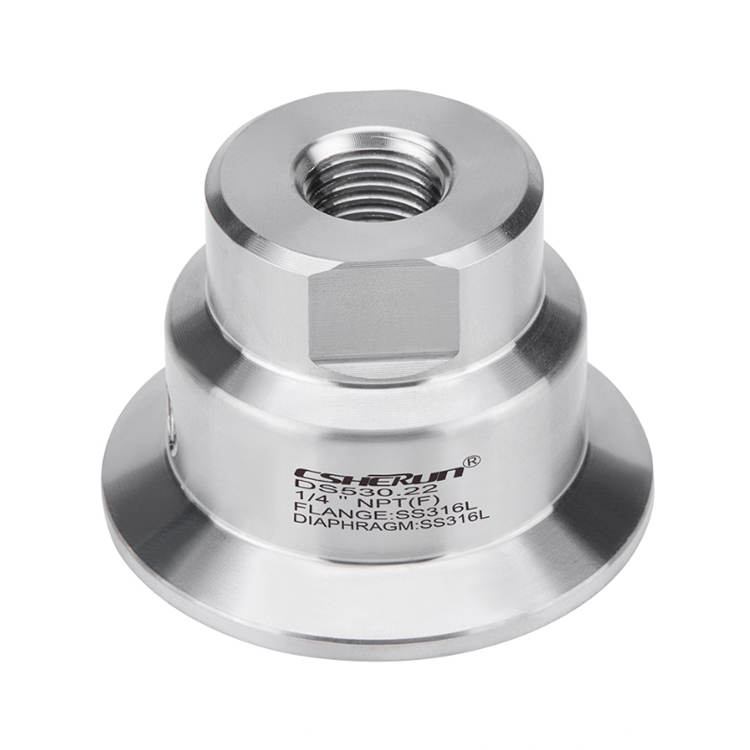

Model DS530.22

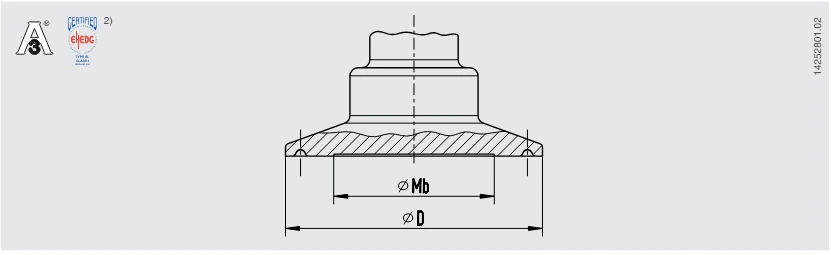

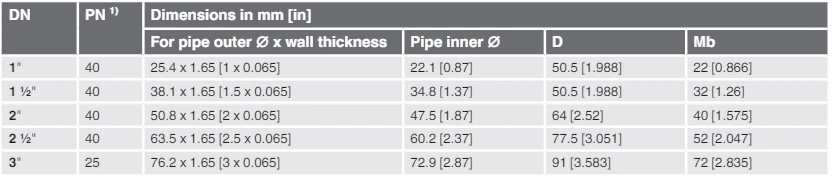

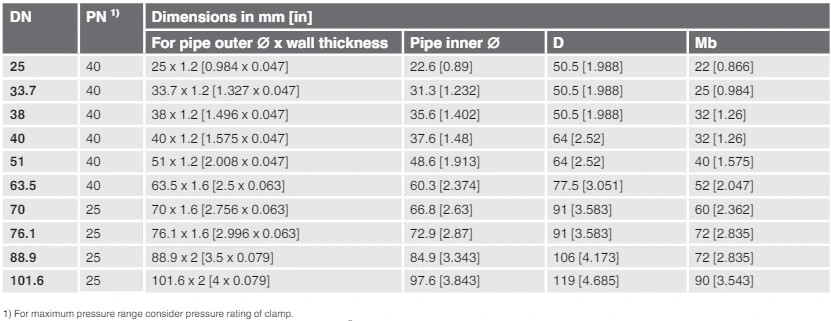

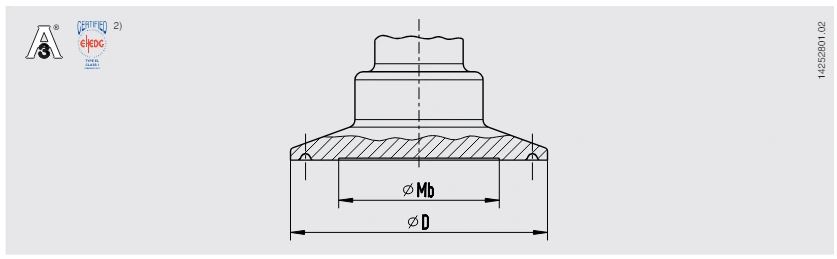

Process connection: Clamp connection per DIN 32676

Pipe standard per DIN 11866 row B and ISO 1127 row 1

Process connection: Clamp connection per DIN 32676

Pipe standard per DIN 11866 row C or ASME BPE

Process connection: Clamp connection per BS4825 Part 3

Pipe standard per BS4825 part 3 and O.D. tube

Model DS530.52

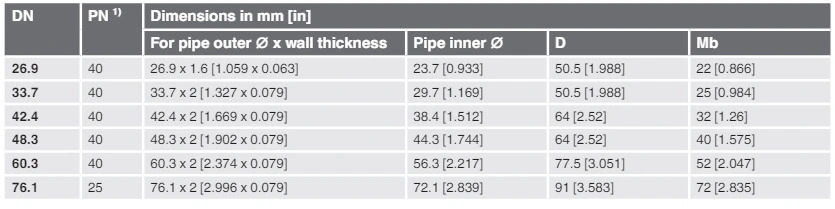

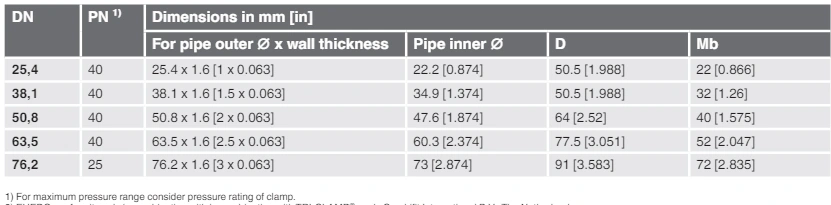

Process connection: Clamp connection per DIN 32676

Pipe standard per DIN 11866 row A and DIN 11850 row 2

Further dimensions and higher nominal pressures on request

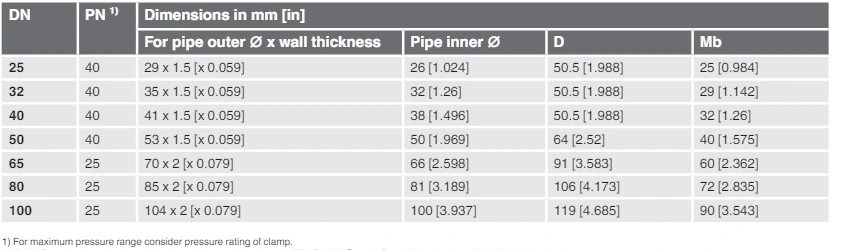

Model DS530.53

Process connection: Clamp connection per ISO 2852

Pipe standard per ISO 2037 and BS 4825 part 1

Further dimensions and higher nominal pressures on request

Diaphragm seal:

Diaphragm seal model / Process connection (type of process connection, pipe standard, pipe dimension) / Material (upper body, diaphragm) / Surface roughness of wetted parts / Sealing / Connection to the measuring instrument / Level of cleanliness of wetted parts / Origin of wetted parts / Certificates
